BREN Receiver & Sight Parts MK1, MK2, MK3, Mk4

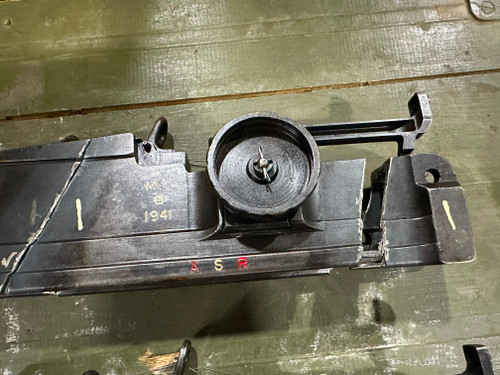

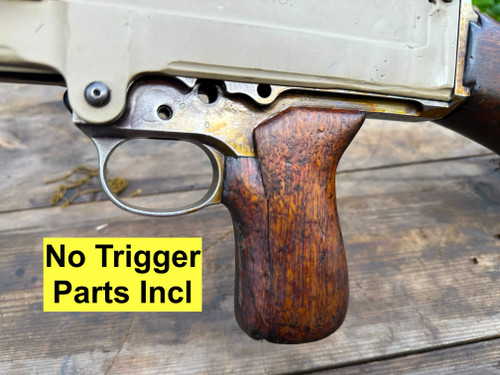

250319-02: BREN MK1 Display Machine Gun

Ships Free in Lower 48Be sure to select free shipping in checkoutActual Items Pictured
 Condition as shown Consignment item Includes: 1 Display / Dummy Gun.  According to the consignor, this was purchase from IMA many years ago and...

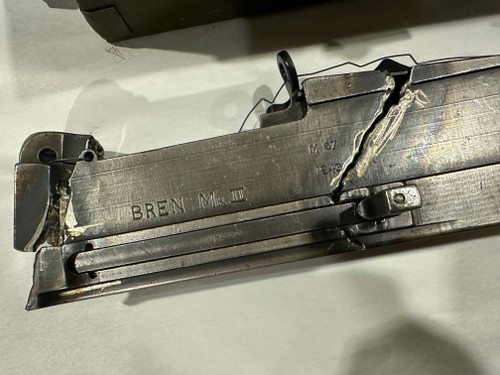

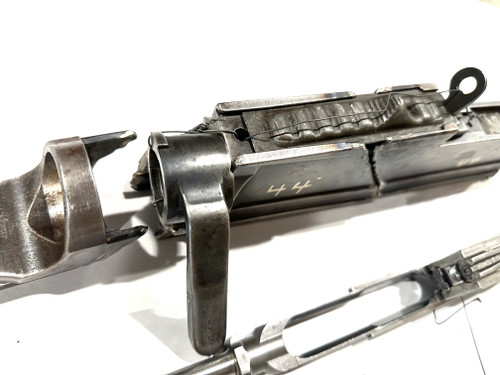

250319-01: BREN MK1 Display Machine Gun

Ships Free in Lower 48Be sure to select free shipping in checkoutActual Items Pictured
 Condition as shown Consignment item Includes: 1 Display / Dummy Gun.  According to the consignor, this was purchase from IMA many years ago and...

1: BACKSIGHT, MK 1

1: BACKSIGHT, MK 1 - Does NOT include detent, detent spring, keep pin, or mounting screw   BE 9417

2: BODY, backsight

2: BODY, backsight CA 0679

4: CAM

4: CAM BE 9429 CA 0797

5: NUT, cam, backsight

5: NUT, cam, backsight BE 9461

7: DETENT, drum, backsight

7: DETENT, drum, backsight   BE 9440

8: DRUM, backsight

8: DRUM, backsight BE 6903 Most have some finish wear as pictured

9: LEAF, backsight, Mk 1

9: LEAF, backsight, Mk 1 BE 9454

10: PLUNGER, sight, back

10: PLUNGER, sight, back BE 8180

11: SCREW, sight, back (Qty. 1)

11: SCREW, sight, back BE 9500 .276" d. x .44".

12: SPRING, drum, detent

12: SPRING, drum, detent BE 9520

15: CATCH, magazine, Mk. 1

Original Item, BE 9433 15: CATCH, magazine, Mk. 1 Mk.1 catch has a milled recess in the rear face of the tumb-piece; the Mk. 2 has a hole bored through it.

13: SPRING, plunger, sight, back

13: SPRING, plunger, sight, back BE 9655

15: CATCH, magazine, Mk. 2 (Rare Sheet Metal Variation)

Original Item - BE 9650 12: Catch, magazine, Mk. 2 Mk.1 catch has a milled recess in the rear face of the tumb-piece; the Mk. 2 has a hole bored through it.   This pattern is made from sheet metal.  It looks like an expedient version made...

15: CATCH, magazine, Mk. 2

Original Item - BE 9650 12: Catch, magazine, Mk. 2 Mk.1 catch has a milled recess in the rear face of the tumb-piece; the Mk. 2 has a hole bored through it.

17: COVER, magazine opening, Mk 1 - Fair Condition

Original Item: Ribbed Surface wear and minor rust as pictured

17: COVER, magazine opening, Mk 1 (Very Good)

Original Item: Ribbed Very Good Condition - As pictured

18: COVER, magazine opening, Mk 2

Original Item: Smooth New Old Stock Has pitting under original finish.

19: CYLINDER, gas, Mk 1 - Bren Mk 1 - EARLY Pattern

19: CYLINDER, gas, Mk 1 - for Bren Mk 1 - EARLY Pattern Original Items Six additional gas vent holes at front. Used / Good Condition. These are threaded into the front of the BREN.  The pins are very difficult to remove and they are also very...

20: CYLINDER, gas, Mk 3 - Bren Mk 1 - LATE Pattern

19: CYLINDER, gas, Mk 1 - for Bren Mk 1 - EARLY Pattern No additional vents under bipod sleeve Original Items Used / Good Condition. These are threaded into the front of the BREN.  The pins are very difficult to remove and they are also very...

20: CYLINDER, gas, Mk 2 - for Bren Mk 2 - LATE Pattern

20: CYLINDER, gas, Mk 2 - for Bren Mk 2 - LATE Pattern UK & late Canadian No additional vents under bipod sleeve Also includes DEFLECTOR, gas, MK 1 PIN, gas cylinder

20: CYLINDER, gas, Mk 2 - for Bren Mk 2 - EARLY Pattern

20: CYLINDER, gas, Mk 2 - for Bren Mk 2 - EARLY Pattern Canadian Six additional vents under bipod sleeve Also includes DEFLECTOR, gas, MK 1 PIN, gas cylinder

22: PIN, body locking

BE 9469   22: PIN, body locking4

24: PIN, magazine catch

BE 9464  Surface wear - generally as pictured 24: PIN, magazine catch

29: Bren Locking Shoulder Screw

29: SCREW - SHOULDER, locking   Newly made item: Parkerized finish

30: Bren Locking Shoulder (SIZE 2X)

30: SHOULDER, locking   Size 00   Sizes Reference:   3x: .834"  2x: .830" 1x: .826" 6: .820"  5: .816"

30: Bren Locking Shoulder (SIZE 6)

30: SHOULDER, locking   Size 6   Sizes Reference:   3x: .834"  2x: .830" 1x: .826" 6: .820"  5: .816"

30: Bren Locking Shoulder (SIZE 00)

30: SHOULDER, locking   Size 00   Sizes Reference:   3x: .834"  2x: .830" 1x: .826" 6: .820"  5: .816"

30: Bren Locking Shoulder (SIZE 4)

30: SHOULDER, locking   Size 4   Sizes Reference:   3x: .834"  2x: .830" 1x: .826" 6: .820"  5: .816"

32: SPRING, body locking pin retainer

Original Item: BE 9524\ Used in Mk. 1 and Mk. 2 Brens

36-40: HANDLE, cocking, Mk 1 ASSEMBLY

Assembled Mk1 Cocking Handle Has reproduction Pin and Plunger

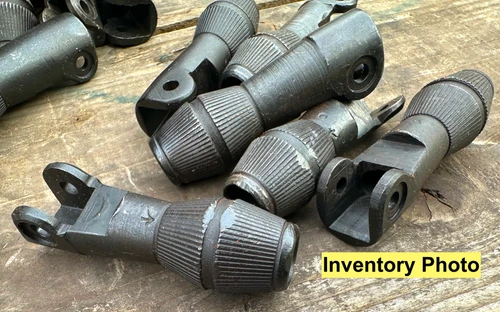

36: HANDLE, cocking, Mk 1

36: HANDLE, cocking, Mk 1 BH 0448

37: PIN, handle, cocking, Mk 1 (reproduction)

37: PIN, handle, cocking, Mk 1 BE 9447 Reproduction Dark Parkerized Finish

38: PLUNGER, handle, cocking, Mk 1 (Reproduction)

38: PLUNGER, handle, cocking, Mk 1 Reproduction of item BE 9467

39: SLIDE, handle, cocking

39: SLIDE, handle, cocking BE 9507

40: SPRING, plunger, Mk1

40: SPRING, plunger, Mk1 BE 9522

BACKSIGHT, MK 2 Assy (Excellent)

BACKSIGHT, MK 2 Assy BE 4112 1 assembly included They have either black or polished  faces (see pics)

2: LEAF, backsight, Mk. 2 (No Top Tension Spring)

Leaf, BACKSIGHT, MK 2 BE 4119 DOES NOT INCLUDE THE TENSION SPRING FOR THE ADJUSTING KNOB (LOCATED ON TOP OF THE LEAF)

5,6,7: KNOB, PIN, SCREW, backsight, Mk. 2

Screw and Knob Assembly for Mk2 backsight Parts: 5,6,7, in diagram Mk2 Rear Sight

8: SLIDE, rear sight, Mk. 2

Original Item:  BE 4140

BREN Barrel Shim (Qty. 1)

original items
